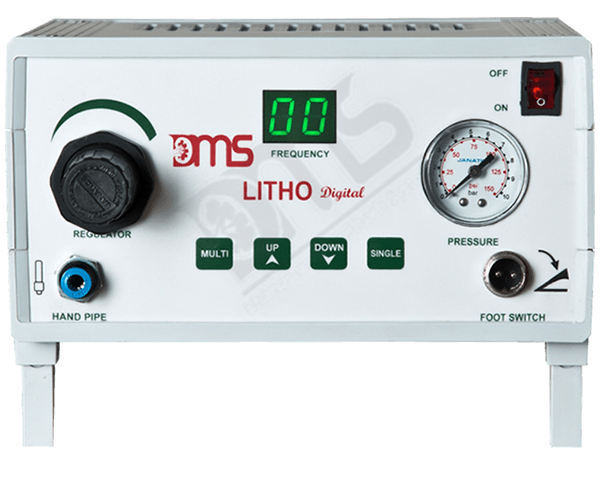

DMS LITHO DIGITAL
Control Unit
| Supply Voltage Operating | 210-240 V A. C., 50 Hz |
| Pressure Minimum | 0.8 Kg./cm2 |
| Dimension | 198 mm x 220 mm x 128 mm |
| Weight | 1,220 Kg. |
| Pressure | Digital Control |
Hand Piece
| Dimension | 190 mm x 22 mm |
| Air Inlet | Straight |
- ABS Plastic body with well-designed control unit.
- The unit is light weight, compact and also mobile compatible.
- DMS system is designed in such a way where it is very accurately providing pulses in both single pulse operating mode as well as continuous pulse operating mode.
- In multiple modes, twelve options are provided starting from one pulse per second to twelve pulses per second.
- The important aspect of the DMS Litho Digital is that there is no utterance of any thermal injury as on heat is generated inside.
- Pressure is generated From 0.8 kg./cm2, a knob is provided for pressure setting and the pressure is divulge from digital display.
- DMS Litho is the top most safer and efficient device, highly appreciated by the urology surgeons.
Selecting the probes provided as standard accessories.
| Uretric probes Size | 0.8 mm, 1.0 mm, 1.2 mm, 1.5 mm / L 610 mm |
| PCNL probes Size | 1.9 mm, 2.4 mm / L 450 mm |
| Bladder probes Size | 1.5 mm, 1.2 mm / L 500 mm |
DMS Digital Accessories
Hand Piece

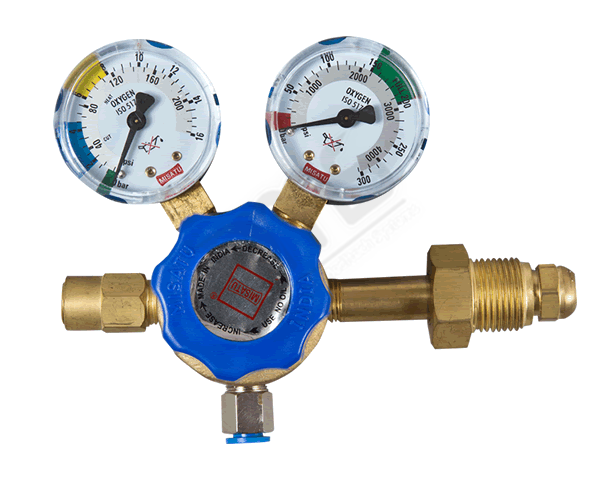

Oxygen Regulator
Foot Switch
Probes
Optional Accessories
DMS Litho Suction
DMS Litho Suction
DMS LITHO SUCTION is an additional component for use with DMS LITHO DIGITAL & DIGITAL PLUS via suction hand piece, hollow probes and hand switch for PCNL.
Features:
- It provides a better endoscopic vision as well as, ideal and safe stone location for disintegration in Kidney stone during lithotripsy.
- During and also post lithotripsy, suction is provided for remaining fragments and stone-dust of kidney stones.

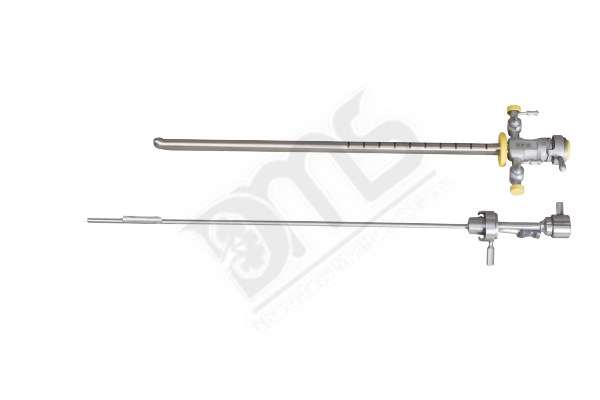

Litho Bridge for Fragmentation
of Bladder Stones, 23.5fr
Litho Bridge for Fragmentation of Bladder Stones
Compatible with 23.5fr Cystoscope Sheath
Send Inquiry

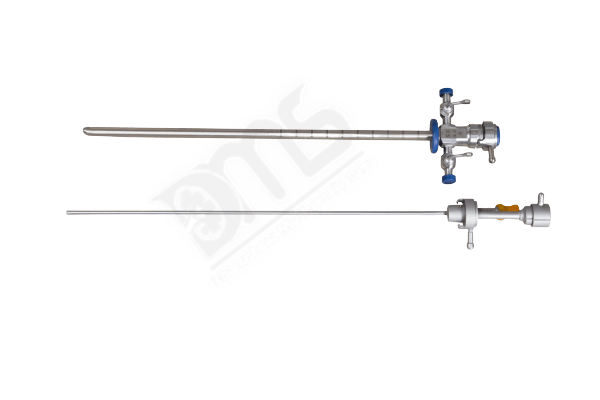

Litho Bridge for Fragmentation
of Bladder Stones , 22fr
Litho Bridge for Fragmentation of Bladder Stones
Compatible with 22fr Cystoscope Sheath

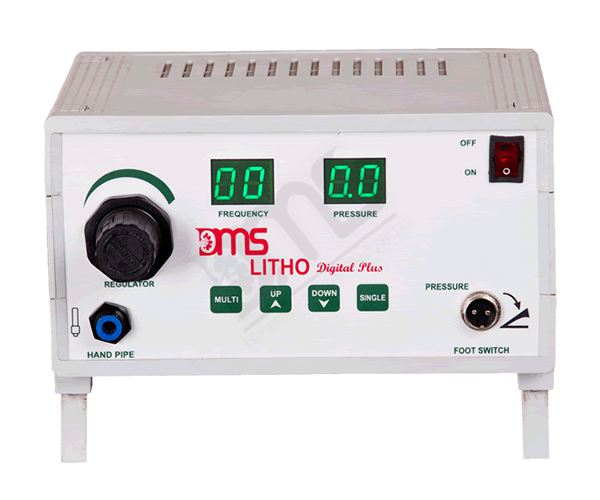

Send InquiryDMS LITHO DIGITAL PLUS
Technical Specification
| Supply Voltage | 210 – 240 V A. C., 50 Hz |
| Power Consumptions | 30 watts |
| Input Gas | Oxygen / Compressed Dry Air |
| In Let Pressure (Minimam)(To Control Unit) | 4kg / Cms2 |
| In Let Pressure (maximum)(To Control Unit) | 6kg / Cms2 |
| Out Let Pressre Indication | 0.5kg / Cms2 by Digital display |
| Frequency of Inpacts | Single Pulse Mode, with twelve selectable options. |
| Dimension | 198 mm x 220 mm x 128 mm |
| Weight | 1,220 kg |
| Pressure | Digital Plus Control |
Hand Piece
| Dimension | 190 mm x 22 mm |
| Air Inlet | Straight |
The vital feature of the DMS LITHO DIGITAL-PLUS is that the system transmits the pulses only after selection of the desired mode from the front panel, thereby eliminating a risk of injury due to accidental pressing of the foot switch during surgical procedure.
“DMS LITHO DIGITAL-PLUS” is a unique for intra corporeal stone fragmentation by “Direct Contact Lithotripsy” under direct vision endoscopic control.
“DMS LITHO DIGITAL-PLUS” is the intra corporeal lithotripter having predominance in techno applicability point of view. It is a most good quality device, found to be an economical and safe from of lithotripsy for braking stones in the kidney, ureter and urinary bladder.
- Light weight.
- Long life.
- Para medical Staff can easily pull apart it for maintenance and fast service.
- Sterilization : Formalin chamber / Cidex.
Features
- ABS Plastic body with well-designed control unit.
- The unit is light weight, compact and also mobile compatible.
- Digitally controlled flow and pressure device generates highly accurate pulses in the form of single pulse operating mode and continuous pulses operating mode. It is used to control power to the hand piece for better stone fragmentation.
- Design of master hand piece and digitally controlled flow and pressure device of DMS LITHO DIGITAL-PLUS provides minimum excursion and bilateral movement of the probes, so it gives safety to endoscope and avoid possible stone migrations.
- No possibility of heat generation inside, hence; no chance of any thermal injury.
- Pressure setting knob to set the desired pressure, which also facilitates constant monitoring of pressure by display.
- Single and multiple mode operations. In multiple modes, twelve options are provided starting from one pulse per second to twelve pulses per second.
- Source of Compressed Air : This electro pneumatic device requires the supply of continuous, quiet, clean and dry air pressure. The air source can be procured three ways i.e. Air compressor, Central Oxygen System, Oxygen Cylinder.
- Central Oxygen System : The unit can also be placed on central oxygen system in the hospitals or institutions providing the normal pressure to activate the system
- Oxygen Cylinder : This is the very common method to provide air pressure. The MDMS LITHO DIGITAL-PLUS is connected with the oxygen cylinder. For this purpose, we provide oxygen regulator
- Air compressor : can be available on specific request.

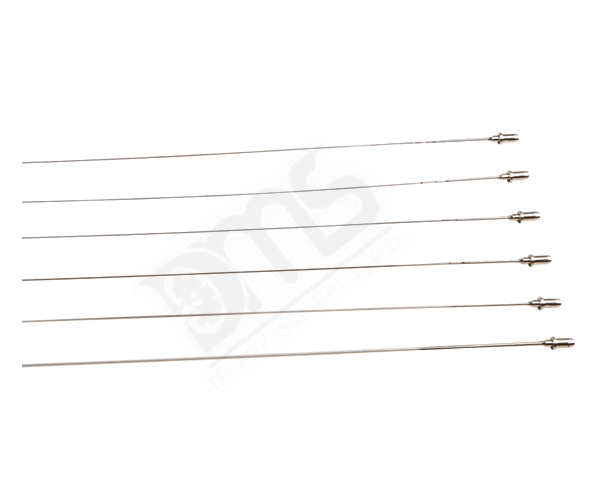

Probes
Rigid lithotripsy probes are available in all sizes and compatible with any ureteroscope and nephroscope. Cost effective and durable.
| PROBES | Size | Leanth |
|---|---|---|
| Uretric probes | 0.8mm, 1mm, 1.1mm, 1.2mm, 1.4mm, 1.5mm | 610mm |
| PCNL Probes | 2.5mm, 3.0mm | 450mm |
| Lithobridge Probes | 1.5mm | 460mm |
Note : Sterilization:formalin chamber OR Cidex.
Standard Accessories
- DMS LITHO control unit (01)
- Hand Piece (02)
- Foot switch (02)
- Soft PU Air tubing to connect with hand piece (01)
- Probes (06)
- OxygenRegulator (01)
- Ari tubing to connect with control unit (01)
- Mains cable (01)
AIR COMPRESSOR
Silent Ari-Compressor to be used with DMS LITHO CLAST with all standard accessories
- Oil Bottle One
- Air Gun One
